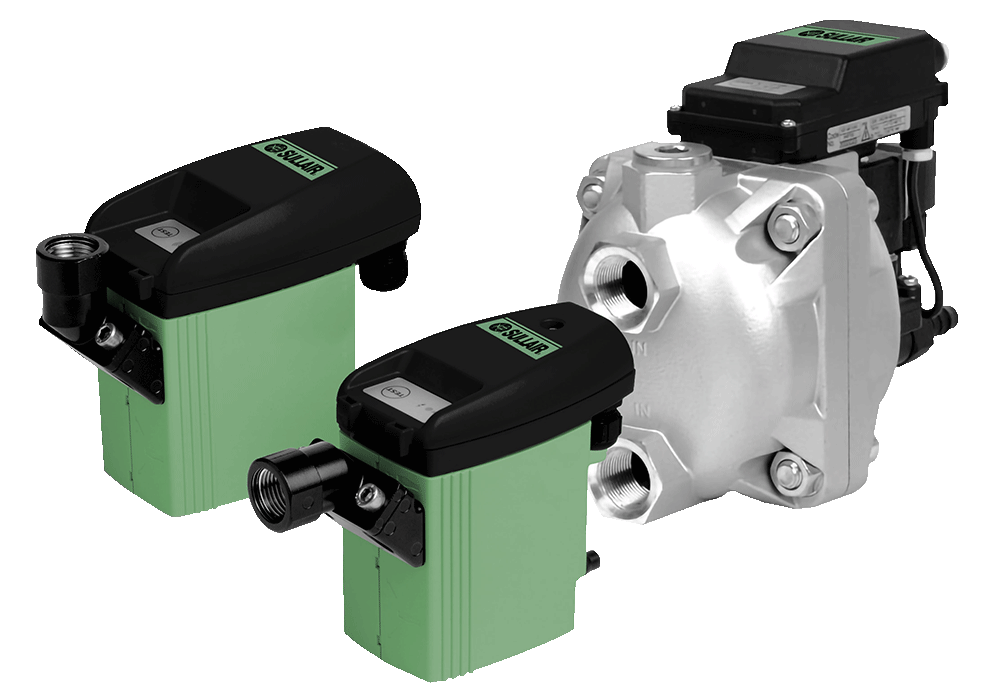

SULLIMAX™ Condensate Drains

• True zero loss for maximum energy savings
• Integrated sieve for the highest reliability
  • No y-strainers needed
  • Minimizes maintenance
• Engineered for low maintenance
  • Helps save time and money
  • Routine maintenance fast and easy
• Sensor-controlled
  • Helps automatically clear clogs and debris
• Integrated alarm
  • Visual status indications on the drain
  • Remote access

SULLIMAX 31

• Housing: Aluminum
• Connection NPT: 1 x 1/2″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 100
• Dryer Flow Rate scfm: 200
• Filter Flow Rate scfm: 1000
• Height in: 4.6
• Width in: 6.5
• Depth in: 2.6

SULLIMAX 32

• Housing: Aluminum
• Connection NPT: 1 x 1/2″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 225
• Dryer Flow Rate scfm: 450
• Filter Flow Rate scfm: 2250
• Height in: 5
• Width in: 6.7
• Depth in: 3

SULLIMAX 33

• Housing: Aluminum
• Connection NPT: 3 x 1/2″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 500
• Dryer Flow Rate scfm: 1000
• Filter Flow Rate scfm: 5000
• Height in: 6.2
• Width in: 8.3
• Depth in: 2.9

SULLIMAX 13

• Housing: Aluminum
• Connection NPT: 2 x 1/2″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 1300
• Dryer Flow Rate scfm: 2600
• Filter Flow Rate scfm: 13,000
• Height in: 6.4
• Width in: 8.3
• Depth in: 3.7

SULLIMAX 14

• Housing: Aluminum
• Connection NPT: 3 x 3/4″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 5400
• Dryer Flow Rate scfm: 10,800
• Filter Flow Rate scfm: 54,000
• Height in: 7.1
• Width in: 9.9
• Depth in: 3.7

SULLIMAX 16 CO

• Housing: Aluminum +  Hard Coating
• Connection NPT: 2 x 3/4″ / 1 x 1″
• Min/Max Pressure psig: 12/232
• Compressor Flow Rate scfm: 50,000
• Dryer Flow Rate scfm: 100,000
• Filter Flow Rate scfm: 500,000
• Height in: 11
• Width in: 13.5
• Depth in: 10.2
