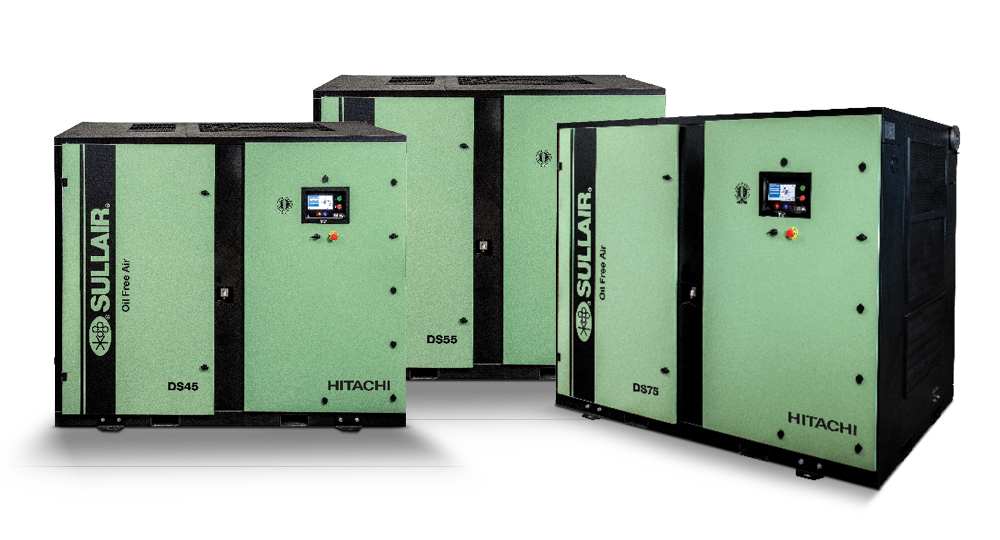

Sullair DS Series Compressors

• Hitachi Two-Stage Air End
  • Stainless steel rotors in first and second stage
  • Patented PTFE-free rotor coating
  • Rotor housing coated internally
  • Both first and second stage air ends are easy to remove separately for long-term maintenance needs
• Designed for Easy Serviceability & Maintenance
  • Easily removable hinged door panels
  • Easy access to typical service and maintenance items
  • Standard full base frame to keep dirt and dust out
• Enhanced Sullair Touch Screen (STS) Controller
  • 7˝ color screen for easy viewing and intuitive operation
  • Menu-driven screens offer easy access to compressor controls
  • Integrated graphing and trending to analyze compressor performance
• Patented Oil Mist Remover (OMR)
  • Removes oil mist from gearcase with 99.99% efficiency
  • Maintains gearcase at negative pressure
• TEFC Premium Efficiency Motor (IE3)
  • Compact and designed for high efficiency
  • TEFC super premium efficiency motor (IE4) standard on VSD models
• Centrifugal Cooling Fan
  • TEFC efficient fan motor
• Drain Separator
  • Located before second stage air end to help remove moisture from first stage compression
• AirLinx® Remote Monitoring
  • Connect anywhere to keep an eye on compressor operation, and reduce the risk of unplanned downtime
  • Monitor pressure, temperature, running hours and service hours
  • Alerts for service and warnings
  • Data checked and collected at 15-minute intervals
  • Customizable reporting, from basic to advanced
  • Real-time information collected via cellular connection

• High Ambient Package (131°F/55°C)
• Cold Weather Package (-4°F/-20°C)
• Weather Hood
• High Altitude Package (3281 to 9843 ft/ 1000 to 3000 m)
• Containment Pan
• PTFE-Free Airstream
• 316 Stainless Steel Cooling Tubes (water cooled only)
• Water Shut Off Valve (water cooled only)
• 65kA Short Circuit Current Rating (SCCR)
• NEMA 4X Stainless Steel Starter Panel
• Remote Air Inlet
• Less Aftercooler
• VFD Radial Fan
• Variable Speed Drive (VSD) Capacity Control**

**Available on 55 and 75 models.

Fixed Speed

• DS4507AC – 60 hp (45 kW), 100 psi (7 bar), 283 cfm (8 m³/min)
• DS4507WC – 60 hp (45 kW), 100 psi (7 bar), 293 cfm (8.3 m³/min)
• DS4509AC – 60 hp (45 kW), 125 psi (8.6 bar), 222 cfm (6.3 m³/min)
• DS4509WC – 60 hp (45 kW), 125 psi (8.6 bar), 234 cfm (6.6 m³/min)
• DS5507VAC – 75 hp (55 kW), 100 psi (7 bar), 351 cfm (9.9 m³/min)
• DS5507VWC – 75 hp (55 kW), 100 psi (7 bar), 358 cfm (10.1 m³/min)
• DS5509AC – 75 hp (55 kW), 125 psi (8.6 bar), 290 cfm (8.2 m³/min)
• DS5509WC – 75 hp (55 kW), 125 psi (8.6 bar), 304 cfm (8.6 m³/min)
• DS5510AC – 75 hp (55 kW), 150 psi (10.3 bar), 259 cfm (7.3 m³/min)
• DS5510WC – 75 hp (55 kW), 150 psi (10.3 bar), 276 cfm (7.8 m³/min)
• DS7507AC – 100 hp (75 kW), 100 psi (7 bar), 473 cfm (13.4 m³/min)
• DS7507WC – 100 hp (75 kW), 100 psi (7 bar), 483 cfm (13.7 m³/min)
• DS7509AC – 100 hp (75 kW), 125 psi (8.6 bar), 408 cfm (11.6 m³/min)
• DS7509WC – 100 hp (75 kW), 125 psi (8.6 bar), 432 cfm (12.2 m³/min)
• DS7510AC – 100 hp (75 kW), 150 psi (10.3 bar), 378 cfm (10.7 m³/min)
• DS7510AC – 100 hp (75 kW), 150 psi (10.3 bar), 388 cfm (11 m³/min)

Variable Speed Drive (VSD)

• DS5507VAC – 75 hp (55 kW), 100 psi (7 bar), 360 cfm (10.2 m³/min)
• DS5507VWC – 75 hp (55 kW), 100 psi (7 bar), 364 cfm (10.3 m³/min)
• DS5509VAC – 75 hp (55 kW), 125 psi (8.6 bar), 307 cfm (8.7 m³/min)
• DS5509VWC – 75 hp (55 kW), 125 psi (8.6 bar), 318 cfm (9 m³/min)
• DS5510VAC – 75 hp (55 kW), 150 psi (10.3 bar), 272 cfm (7.7 m³/min)
• DS5510VWC – 75 hp (55 kW), 150 psi (10.3 bar), 283 cfm (8 m³/min)
• DS7507VAC – 100 hp (75 kW), 100 psi (7 bar), 445 cfm (12.6 m³/min)
• DS7507VWC – 100 hp (75 kW), 100 psi (7 bar), 459 cfm (13 m³/min)
• DS7509VAC – 100 hp (75 kW), 125 psi (8.6 bar), 396 cfm (11.2 m³/min)
• DS7509VWC – 100 hp (75 kW), 125 psi (8.6 bar), 406 cfm (11.5 m³/min)
• DS7510VAC – 100 hp (75 kW), 150 psi (10.3 bar), 364 cfm (10.3 m³/min)
• DS7510VWC – 100 hp (75 kW), 150 psi (10.3 bar), 371 cfm (10.5 m³/min)
